Body Type
C-SUV
Exterior Dimensions
Length: 4640 mm
Width: 1865 mm
Height: 1665 mm
Wheelbase
2755 mm
GGround Clearance
181 mm
Kerb Weight
1683-1801 kg
Gross Vehicle Weight
2270 kg
Minimum Turning Radius
5.9 ± 0.2 m
Number of Doors
5
Seating Capacity
5 persons
Number of Seating Rows
2 rows
Trunk Capacity
Min: 582 L
Max: 1903 L
Fuel Type
Petrol

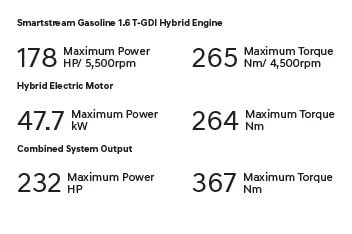

Engine

Emission Standard
Euro 5
Displacement (cc)
1598
Max Power (HP) / rpm
178/5500 rpm
Max Torque N-m / rpm
265/1500-4500 rpm
Engine Type
Smartstream G1.6 T-GDi HEV
Cylinders
In-Line 4-Cylinder
Compression Ratio
10.5:1
Fuel System
GDI (Gasoline Direct Injection)
Intake System
TIS
Fuel Tank Capacity (l)
52

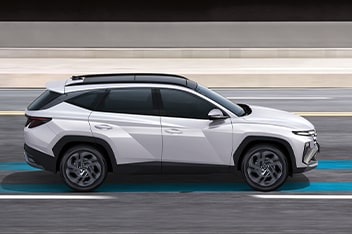

Electric Motor

Motor Type
Permanent Magnet Synchronous Motor (PMSM)
Max. Power (kW)
47.7
Max. Torque (Nm)
264

Engine + Electric Motor

Max. Power (kW)
173
Max Power (HP)
232
Max. Torque (Nm)
367

Battery

Battery Type
Lithium ion
Voltage
270 Volt
Battery System Capacity
1.49 kWh
Battery Power Output
64 kW

Drive Type and Transmission

Drive
AWD
Transmission
6-Speed AT

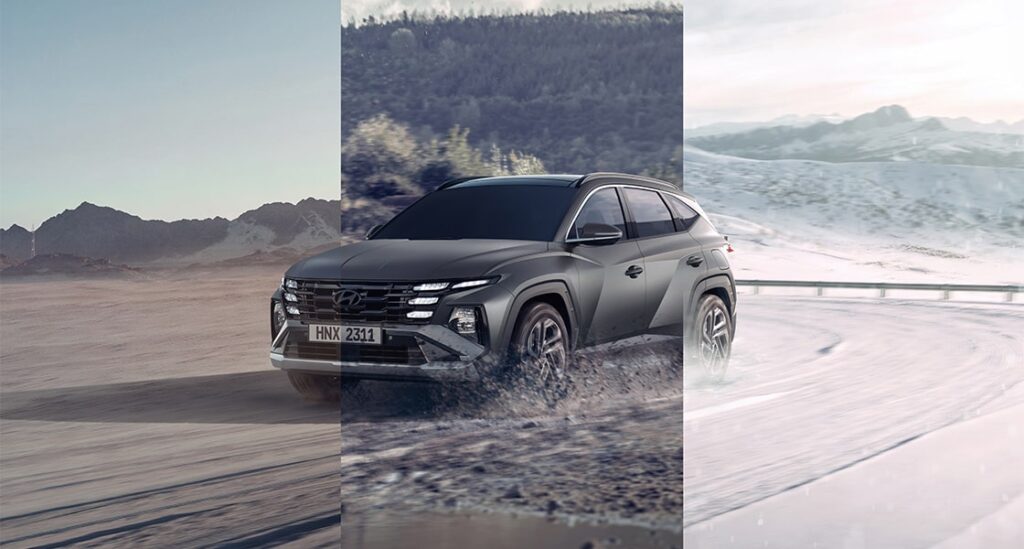

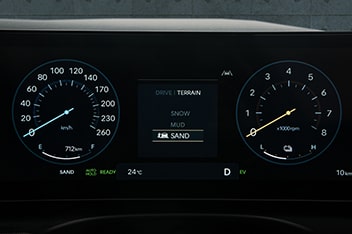

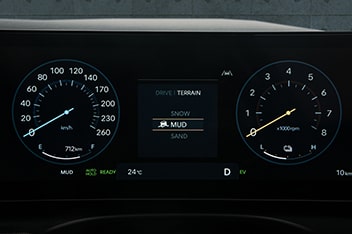

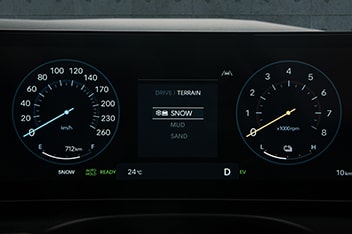

Terrain Mode
(Snow, Mud, Sand)

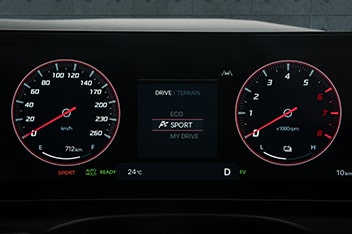

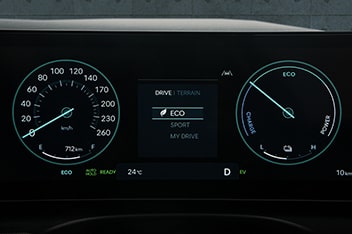

Drive Mode Select
(Eco, Sport, My Drive)

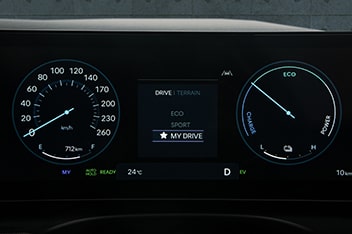

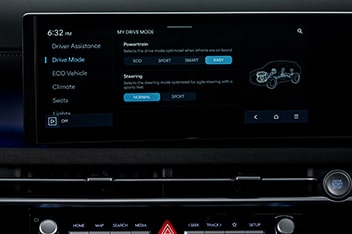

My Drive Mode
Powertrain: (Eco, Sport, Smart, Baby)
Steering: (Normal, Sport)
Manual Shift Mode
Paddle Shifters
TGS Knob
Column Type – Shift by wire
Wheel & Tyre

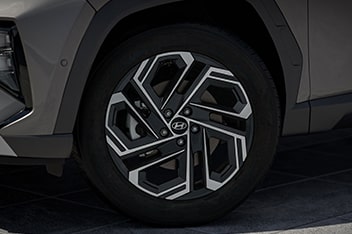

Wheel Type: Alloy Wheel
Wheel Size: 19 in
Tyre Size: 235/55 R19

Steering

Material: 3 Spoke – Leather
Power Steering: Yes
Heated: Yes
Adjustment: Manual Tilt & Telescopic

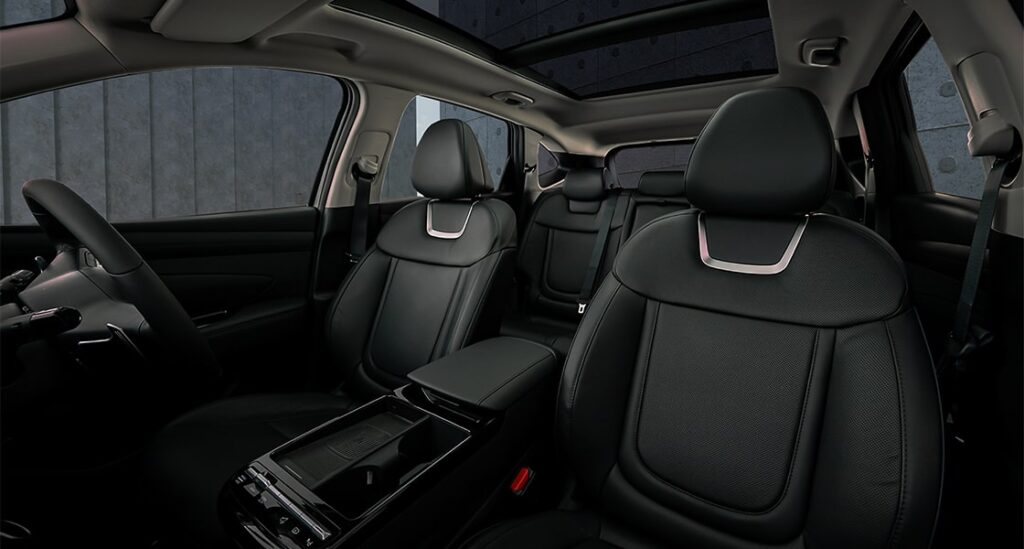

Front Seat

Headrest: Up/Down (D+P)
Seat Height Adjuster: Yes (D+P)
Power Seat: Yes (D+P) 8-way powered
Lumbar Support: Driver 2-way

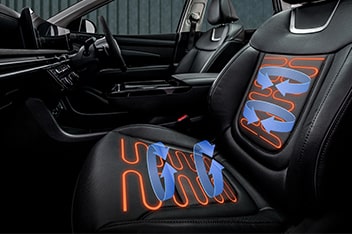

Ventilated Seat: Yes (D+P)
Heated Seat: Yes (D+P)

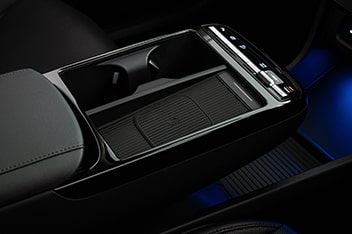

Centre Console Box: Floating Type

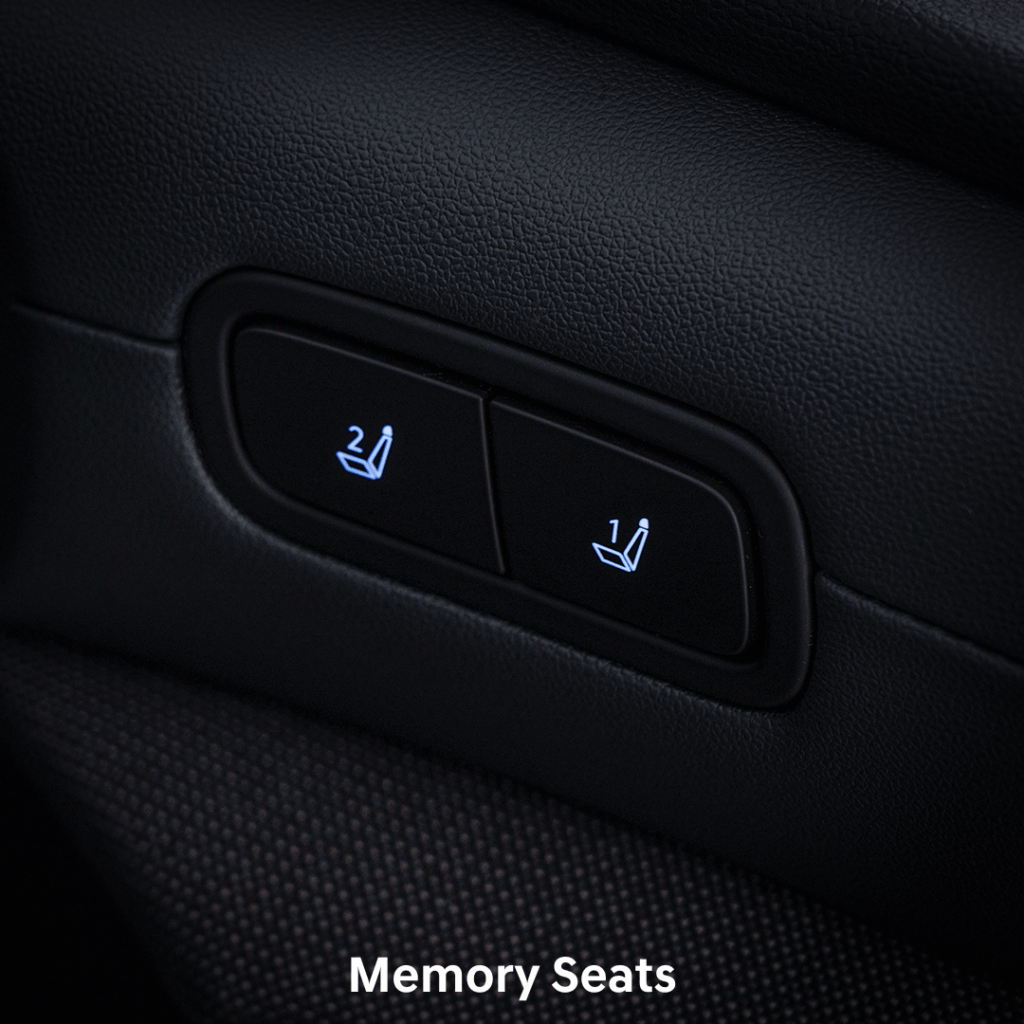

Memory Seat: Yes
Seat Back Pocket: Yes (D+P)

Rear Seat

Headrest: Up/Down (LH/RH/CTR)
Armrest with Cup Holder: Yes
Rear Seat Reclining: 60:40 Folding
Rear USB Charging: 2 C-Type Ports

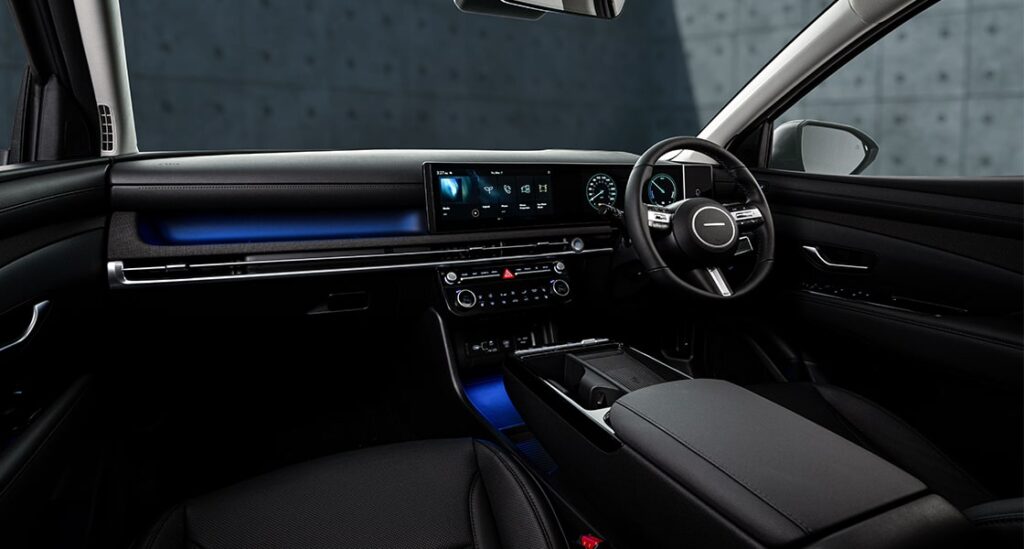

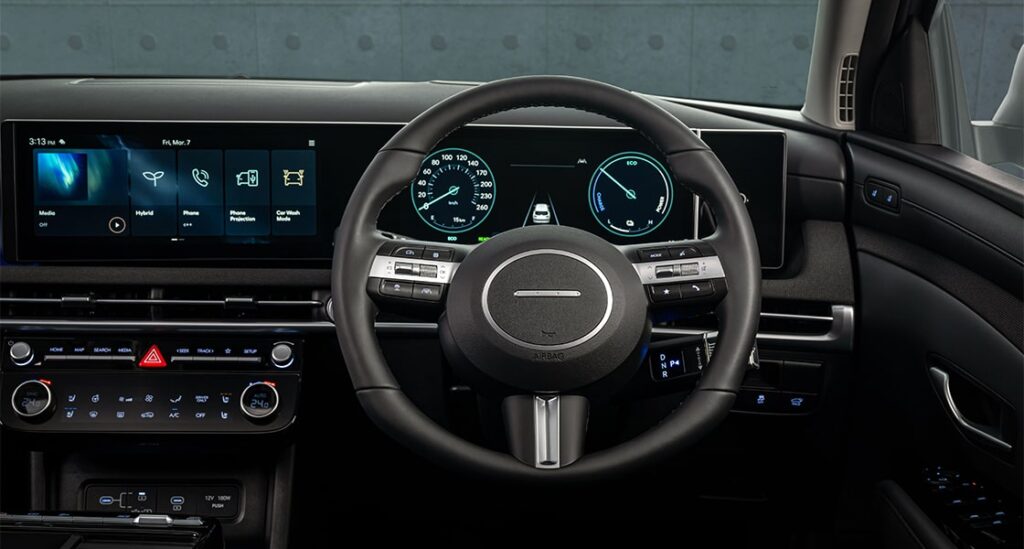

Instrument Cluster

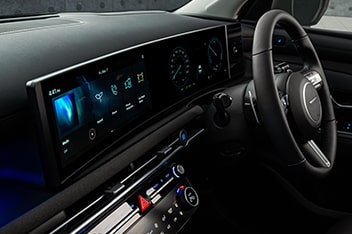

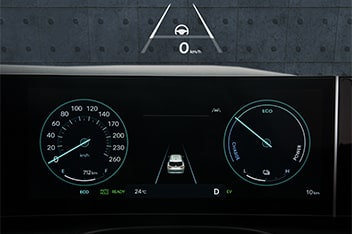

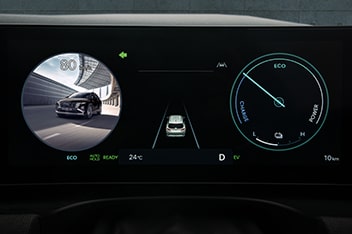

Cluster Type: INTEGRATED DISPLAY 12.3″ TFT LCD (CLU) + 12.3″ TFT LCD + RHEOSTAT
Head-up Display: Yes (12″ color display)

Lighting & Sensors

Auto Light Control: Yes

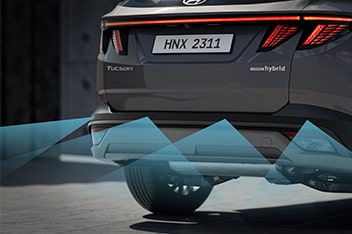

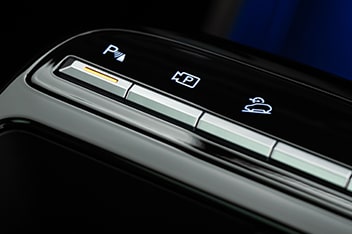

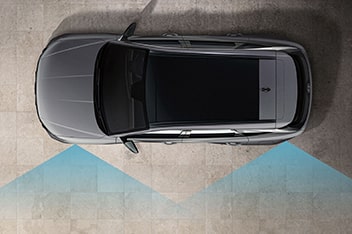

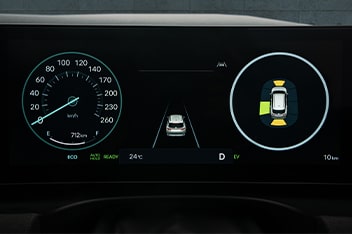

Parking Sensor: Forward / Side / Reverse
Blind Spot Detection (BSD)/ Lane Watch: Yes

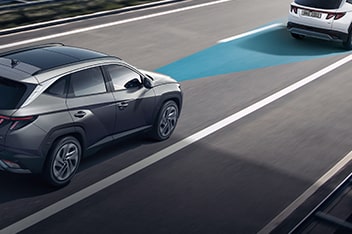

Smart Cruise Control: Yes (w/ Stop & Go)

Steering & Controls

Steering Wheel Switches: Yes (Audio + MID + Voice Control + Vehicle Distance + Smart Cruise Control + Lane Keep Assist + Favorites)
Paddle Shifter: Yes
Trip Computer: Yes
Seat Belt Warning: Yes

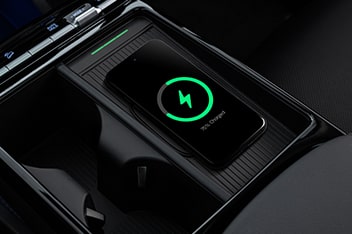

Wireless Charger: Yes (w/ 2 Animations)
Multi-Purpose Tray: Yes
After Blow: Yes

Battery & Charging

Battery Charger: Front + Rear + Luggage (12V / 180W)

Audio & Connectivity

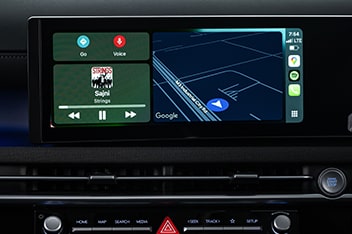

Android Auto/ Apple CarPlay: Yes (Wireless)
AM/FM Radio: Yes
MP3: Yes
Screen: INTEGRATED DISPLAY 12.3″ TFT LCD (CLU)
Floating Screen: Yes
USB: Yes
Bluetooth: Yes (w/ Voice Recognition)

Cameras & Parking

Rear View Camera: Yes (w/ Dynamic Parking Guidelines)
360 Camera: Yes

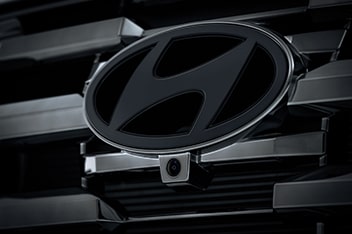

Front View Camera: Yes

Audio System

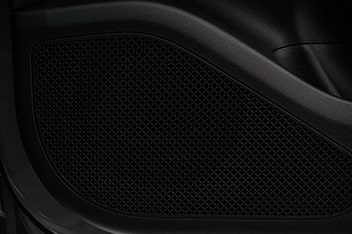

Number of Speakers: 6

Climate & Comfort

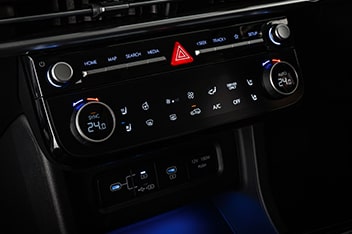

Air Conditioner Controller: 6.6 inch (Dual Zone Climate Control)
Auto Defogger: Yes
Rear AC Ventilation: Yes
Rain-sensing Wipers: Yes

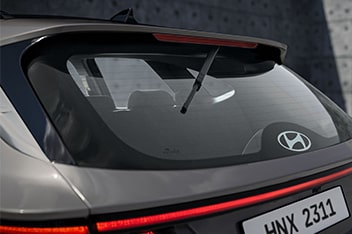

Rear Wiper: Yes

Safety Features

Fingerprint (AVN Authentication + Engine Start): Yes
Keyless Entry: Smart Key
Burglar Alarm: Yes
Smart Entry + Push Start: Yes

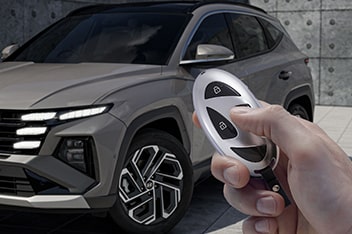

Remote Engine Start: Yes
Anti-Lock Braking System (ABS): Yes
Electronic Brake-Force Distribution (EBD): Yes
Brake Assist (BA): Yes
Down-Hill Brake Control (DBC): Yes
Emergency Stop Signal (ESS): Yes
Multi Collision Brake (MCB): Yes
Trailer Stability Assist (TSA): Yes
Electronic Stability Control (ESC): Yes
Hill-Start Assist Control (HAC): Yes
Vehicle Stability Control (VSC): Yes
Traction Control System (TC/TCS): Yes

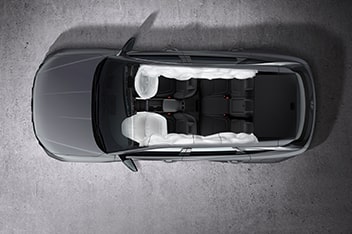

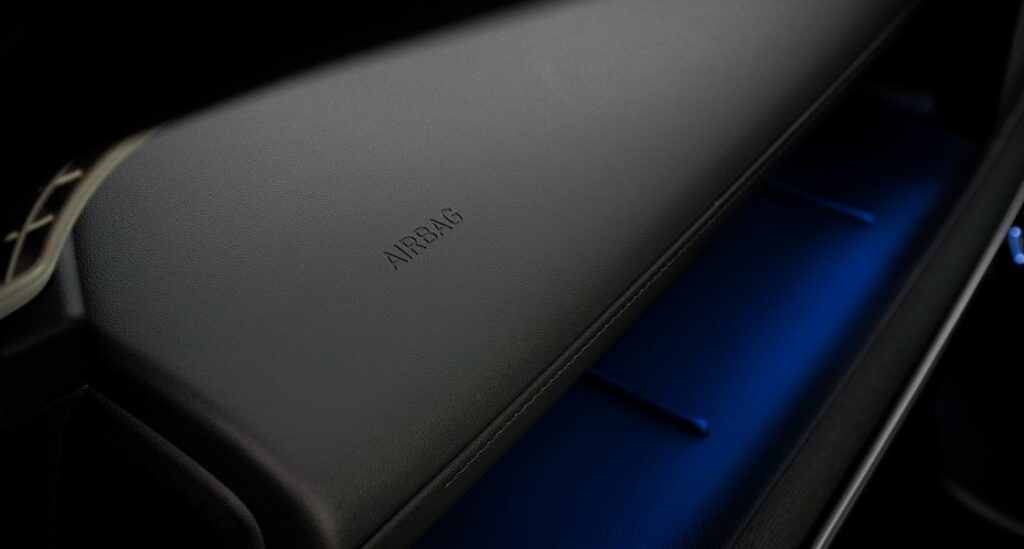

Airbags

Driver: Yes
Passenger: Yes
Front Side: Yes
Curtain: Yes

Parking Brake

Type: Electric

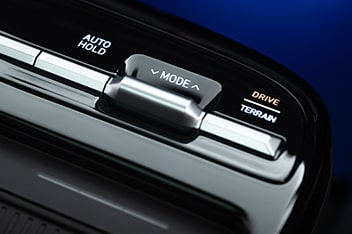

Auto Brake Hold: Yes
Electronic Parking Brake (EPB): Yes

Door Locking

Central Door Locking: Yes
Speed Sensing Door Lock: Yes
Child Safety Lock: Yes

Blind-Spot Collision-Avoidance Assist (BCA): Yes
Blind-Spot View Monitor (BVM): Yes

Driver Attention Warning (DAW)

Leading Vehicle Departure Alert: Yes

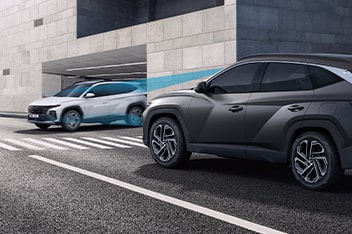

Forward Collision-Avoidance Assist (FCA 1.5)

Car / Powered two-wheeler / Pedestrian / Cyclist detection: Yes
Direct Oncoming function (FCA – DO): Yes
Junction Turning function (FCA – JT): Yes

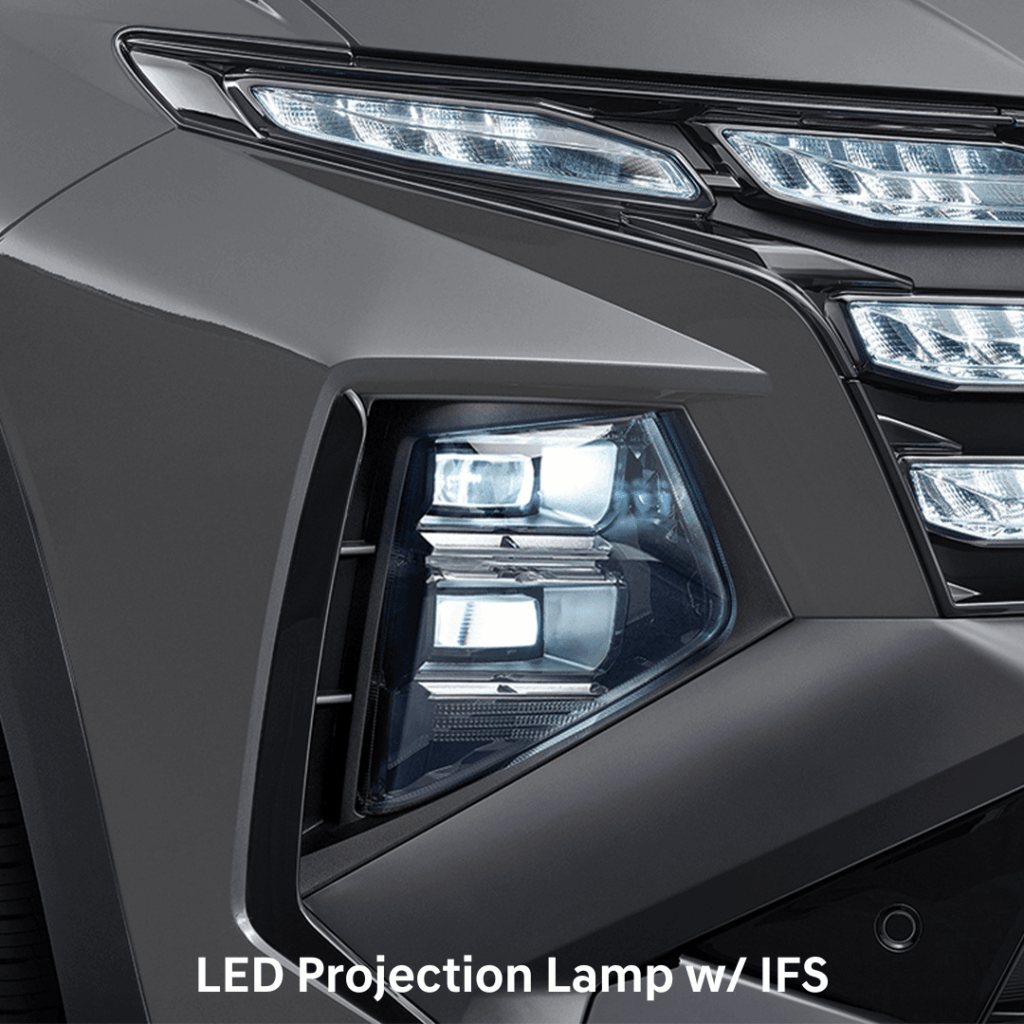

High Beam Assist (HBA): Yes (IFS w/ Speed Options)
Manual Speed Limit Assist (MSLA): Yes
Lane Following Assist (LFA): Yes

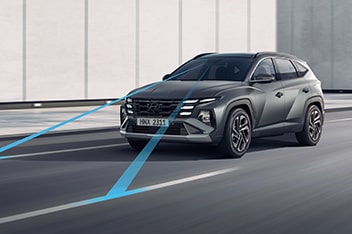

Lane Keeping Assist – Line/Road-Edge (LKA-L/R): Yes

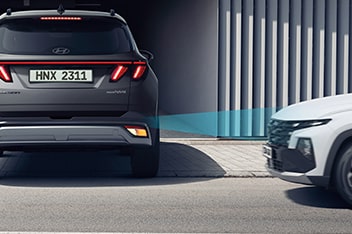

Parking Collision-Avoidance Assist – Reverse (PCA-R): Yes

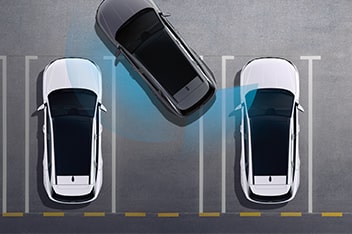

Rear Cross-Traffic Collision-Avoidance Assist (RCCA): Yes
Crosswind Stability Control (CSC): Yes
Rear Occupant Alert (ROA): Yes
Safe Exit Assist (SEA): Yes
Smart Cruise Control with Stop & Go (SCC w/ S&G): Yes
Emergency Stop Signal (ESS): Yes

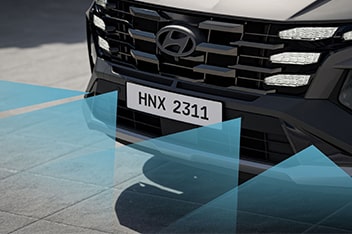

Parking Distance Warning – Forward/Side/Reverse

Dynamic guidelines & contour guidance: Yes

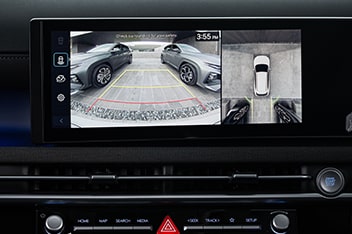

Surround View Monitor (SVM) Camera

3D Surround View function: Yes
Front view, rear view, side view: Yes
Top-down view w/ car wash entering mode: Yes
Front/Rear wide view function – w/ image view on command: Yes

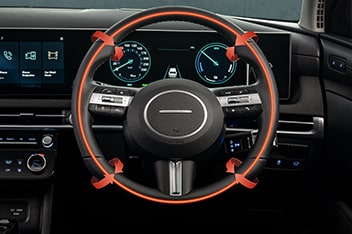

Steering wheel with Haptic Feedback: Yes
